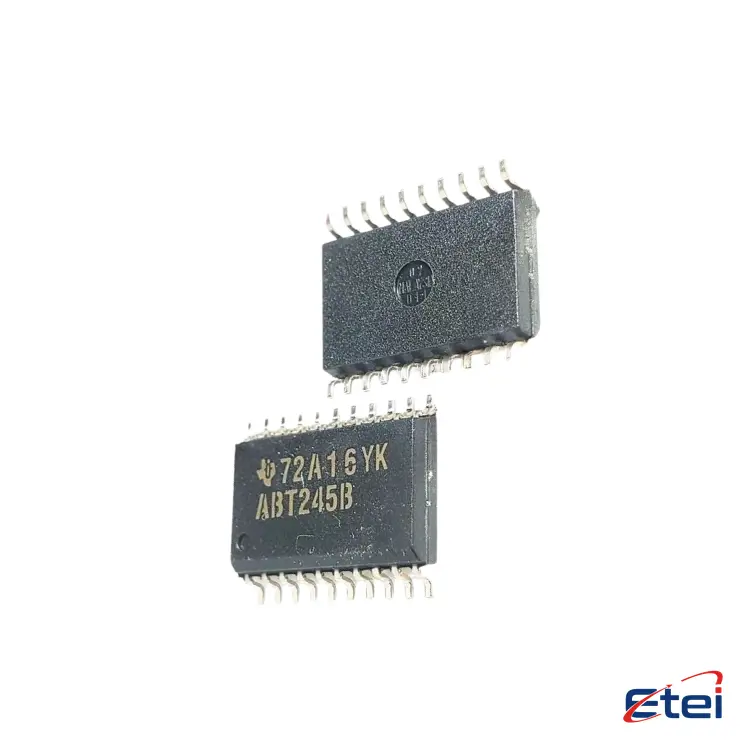

SN74ABT245BDWR

The SN74ABT245BDWR is an octal bus transceiver designed for asynchronous two-way communication between data buses. It features three-state outputs, enabling bus line isolation and signal integrity. The device operates with a power supply voltage ranging from 4.5 V to 5.5 V, making it suitable for 5V logic families. It has a high drive capability, allowing it to directly drive high-capacitance bus lines and provide high-speed signal switching.
Key features include output enable (OE) and direction control (DIR) pins, which control the signal flow direction and the activation of the transceiver outputs. This device is widely used in applications requiring bidirectional data transfer between different parts of a system, such as microprocessors or peripheral devices. Its small-outline integrated circuit (SOIC) package makes it suitable for compact designs. Additionally, the SN74ABT245BDWR is designed to be compatible with TTL and CMOS logic levels, providing versatility in different digital circuit environments.

The SN74ABT245BDWR is an octal bus transceiver with 3-state outputs, commonly used for bidirectional data communication. Equivalent products include:
1. 74HC245 - A similar octal bus transceiver with lower power consumption.
2. 74ALS245 - Offers similar functionality with different electrical characteristics.
3. 74F245 - Fast variant with similar functionality.
4. 74AHC245 - Advanced high-speed CMOS variant.
Always verify electrical and mechanical specifications to ensure compatibility for your specific application.

The SN74ABT245BDWR is an octal bus transceiver device designed for asynchronous two-way communication between data buses. Key features include:
1. Voltage Range: Operates within a supply voltage range from 4.5V to 5.5V.
2. High-Speed Operation: Delivers high-speed performance with fast propagation delays and transition times.
3. Three-State Outputs: Outputs can be placed in a high-impedance state to enable multiple devices to share a common bus without interference.
4. Low Power Consumption: Offers reduced power dissipation, making it suitable for battery-powered applications.
5. Controlled Output Edge Rates: Limits output edge rates to minimize noise.
6. Bi-directional Data Flow: Allows data to transfer in both directions, controlled by the direction (DIR) pin.
7. Drive Capability: Can drive up to 64 devices, suitable for driving loads like bus lines.
8. Latch-up Performance: Tested for 250 mA at 85°C, ensuring robust operation.
9. Available in Small Package: Offered in a 20-pin SOIC package, providing space-saving advantages for compact designs.
These features make it ideal for data buffering and bus interfacing in various digital applications.

The SN74ABT245BDWR is an octal bus transceiver with 3-state outputs. It is designed for asynchronous two-way communication between data buses. The device features 20 pins in a standard SOIC (Small Outline Integrated Circuit) package.
The key functions and pin configuration include:
1. V_CC (Pin 20): Supply voltage.
2. GND (Pin 10): Ground.
3. A1-A8 (Pins 2, 3, 4, 5, 6, 7, 8, 9): Data inputs/outputs for bus A.
4. B1-B8 (Pins 18, 17, 16, 15, 14, 13, 12, 11): Data inputs/outputs for bus B.
5. OE (Pin 19): Output enable. When low, it enables the device to transmit data. When high, it places the outputs in high-impedance mode.
6. DIR (Pin 1): Direction control. Determines the direction of data flow. When high, data flows from A to B. When low, data flows from B to A.
The SN74ABT245BDWR is suitable for applications requiring bidirectional data transfer and level shifting between buses.

The SN74ABT245BDWR is manufactured by Texas Instruments (TI). Texas Instruments is a global semiconductor company that designs and manufactures a wide range of electronic components and integrated circuits. Founded in 1930 and headquartered in Dallas, Texas, TI is known for its innovation in analog and embedded processing technologies. The company supplies products that are used in various electronic systems, including those in consumer electronics, automotive, industrial, and communications sectors. TI is recognized for its strong focus on research and development, contributing to advancements in the semiconductor industry.

The SN74ABT245BDWR is an octal bus transceiver with 3-state outputs, commonly used in digital systems to facilitate bidirectional data flow between buses. Its application areas include:
1. Data Bus Isolation: It provides isolation between data buses in computing and communication devices.
2. Level Shifting: Useful in interfacing circuits with different voltage levels.
3. Memory and Microprocessor Systems: Facilitates communication between microprocessors, memory, and peripheral components.
4. Networking Equipment: Used in routers and switches for data handling.
5. Industrial Automation: Applied in control systems for efficient data routing.
Its features include high-speed operation, low power consumption, and the ability to drive capacitive loads.

The SN74ABT245BDWR is a part of the Texas Instruments ABT logic family and comes in a SOIC (Small Outline Integrated Circuit) package. Specifically, the "DWR" in the part number signifies a 20-pin SOIC package with a tape and reel option for automated manufacturing processes.
